5 1/4"sq Tilter Swivel - Kitchen Heavy Duty

Style # SKU 402

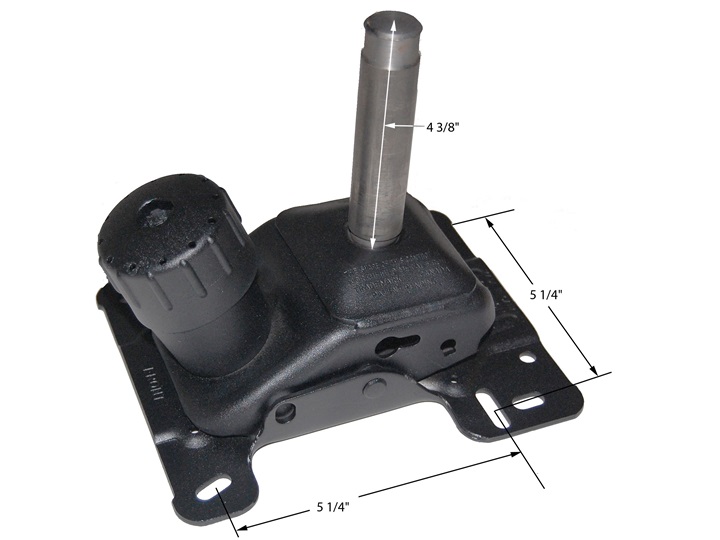

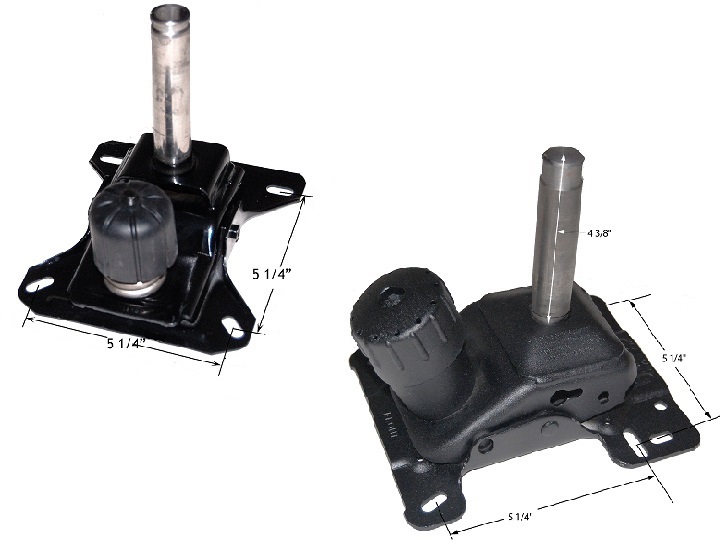

5 1/4" x 5 1/4" screwholes ALSO,
5 1/4" x 6" screwholes
Heavy Duty model
Thicker steel plate
Body height-without shaft/knob 2 5/8"
Solid steel shaft 1" diameter
Shaft welded into tapered cup
Length of shaft 4 3/8"
Adjustable heavy duty tension spring
Weight 6 lbs. Residential or Commercial service


Heavier everything kitchen duty swivel tilter
5 1/4 X 5 1/4" mounting screw hole pattern
Plate is 6 3/4" wide x 8" front to back<

How to remove and install Kitchen Tilter
How to remove, measure and install Plastic Insert

We cannot guarantee measurements will be correct for your particular pipe dimension or wall thickness.

Mounting board-Easy adapt to your chair
